NM200GY K5LS

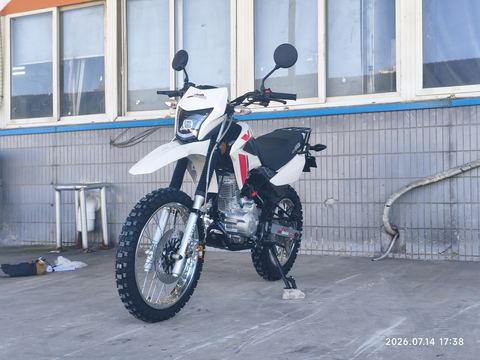

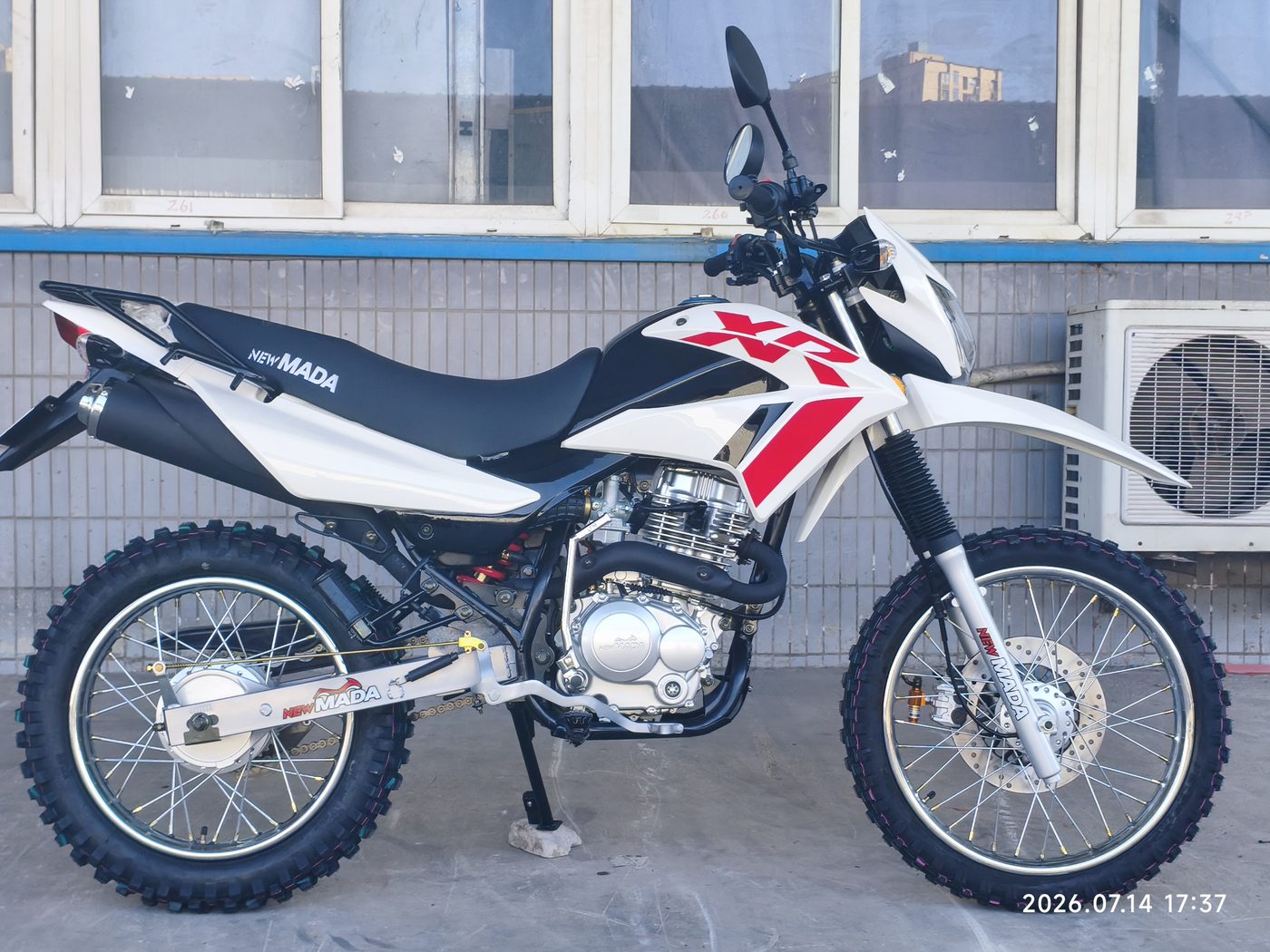

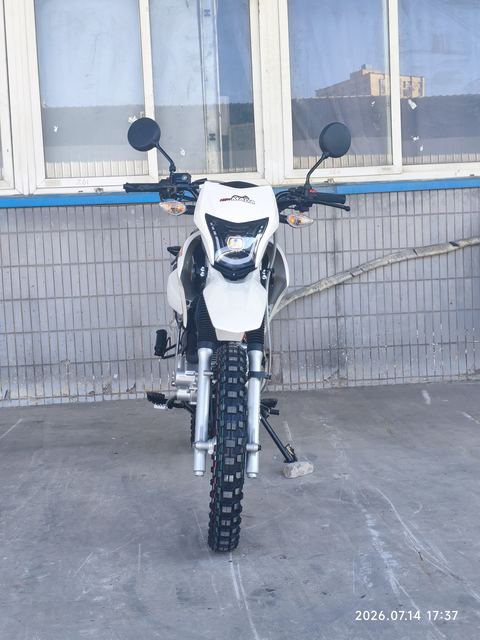

NM200GY K5LS Off-Road Motorcycles
Model NM200GY K5LS in the Off-Road Motorcycles range. Send the quantity and destination port for availability, MOQ and lead time.
Off-Road Motorcycles197 cc3 factory photos
TECHNICAL DATA
Specifications — NM200GY K5LS
Values shown as “Contact for confirmation” have not yet been verified by the manufacturer for publication. We publish confirmed data only.
| Displacement | 197 cc |
|---|---|
| Engine type | Contact for confirmation |
| Bore x stroke | 63.5 × 62.2 mm |
| Max power | 10.2 kW @ 8,000 rpm |
| Max torque | 13.4 N·m @ 6,500 rpm |
| Transmission | Contact for confirmation |
| Starting system | Kick and electric start / CDI |
| Front brake | Disc |
| Rear brake | Drum |
| Front tyre | Contact for confirmation |
| Rear tyre | Contact for confirmation |
| Fuel tank capacity | Contact for confirmation |
| Kerb weight | Contact for confirmation |
| Dimensions (L x W x H) | 2060 × 820 × 1170 mm |
| Ground clearance | 270 mm |
| Seat height | Contact for confirmation |
| Suspension travel | Contact for confirmation |
Trade & delivery terms
| MOQ | Contact for confirmation |
|---|---|
| Incoterms | Contact for confirmation |
| Lead time | Contact for confirmation |
| Container loading | Contact for confirmation |
| Homologation / certification | Contact for confirmation |
| Warranty | Contact for confirmation |
| Spare parts support | Contact for confirmation |
